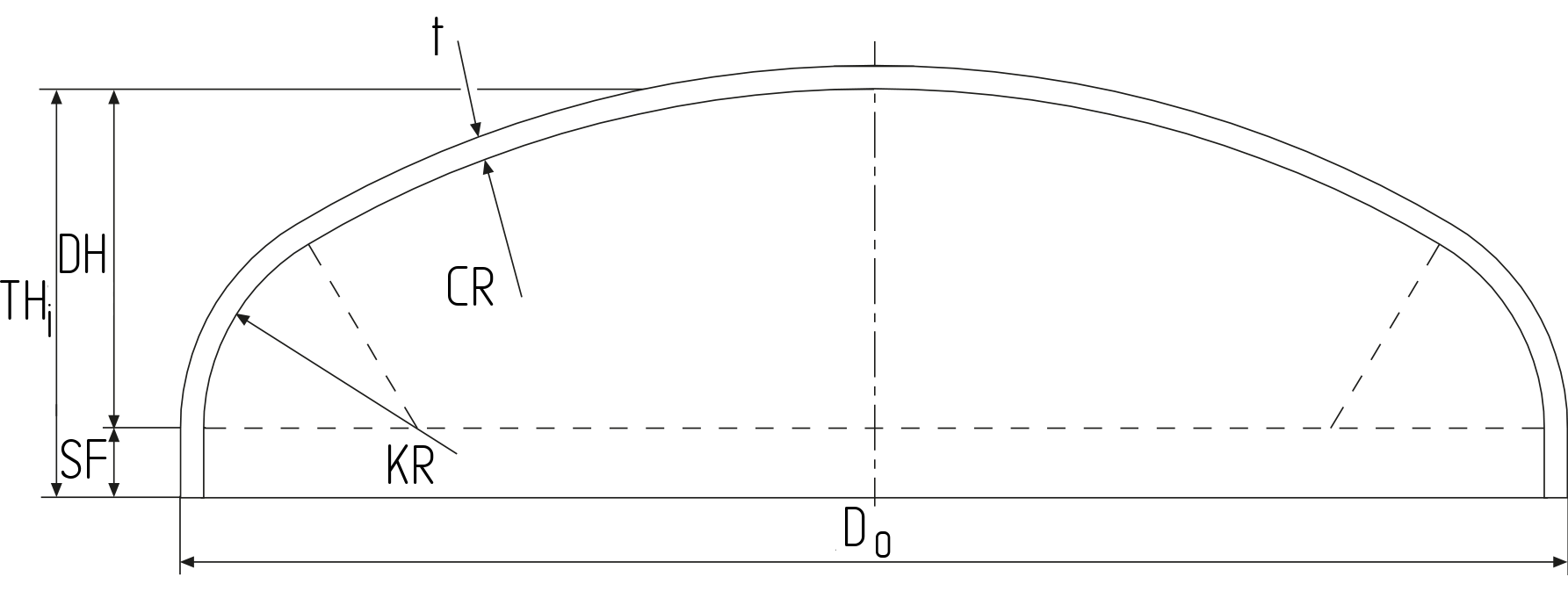

Semi ellipsoidal head DIN 28013

Semi ellipsoidal head DIN 28013

CR    0,8 Do

KR    0,154 x DO

SF    3 x t

DH   0,255 x Do - 0,635 x t

THi    SF + DH

Legend Semi ellipsoidal head

t = wall thickness

Do = outside diameter

Di = inside diameter

CR = crown radius

KR = knuckle radius

SF = straight flange height

DH = dished height

THi = total height inside
